LM-230 Series
LM-230
MODEL |
LM-230S |
LM-230M | LM-230L |
| DRIVE | Step Motor Drived |
||
| DIRECTION | Right/Left |
||
| MAX SPEED | 20/30/50 M |
||
| LABELLING SPEED | 200pcs/min |
||
| LABEL WIDTH | 10-60mm |
10-100mm |
10-150mm |
| PRECISION | ± 1mm |
± 1mm |
± 1.5mm |
| LABEL ROLL | 300mmØ |
||
| LABEL CORE | Stander 75mmØ (3") |
||
| MACHINE SIZE | Refer to Diagram 1 below |
||
| WEIGHT | 65kg |
68kg |
75kg |
| POWER | AC 110V/220V (signal Phase) x 0.5kW |
||
| CODING DEVICE | HP-700IA (Penumatic) |
||
| MOUNTING | Top/Side |
||
| CONVEYOR | 200mm(W) x 1500mm(L) x 800(±100)mm(H) |
||

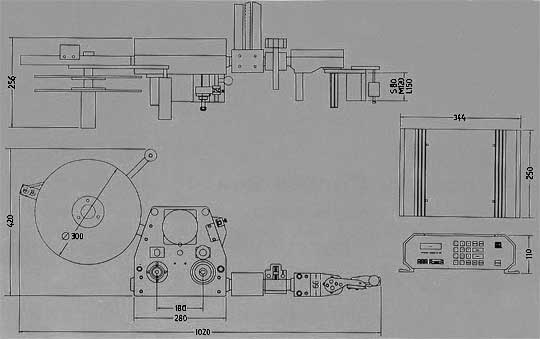

Diagram 1
