                                   PW Series

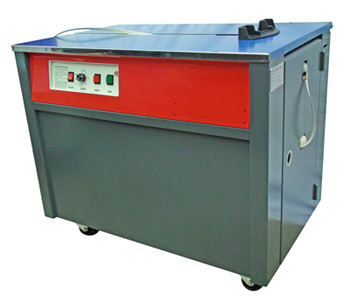

PW-316H Strapping Machine

PW-316H Semi Auto Strapping Machine

Simple operation

Easy maintenance

Advanced P.C.B control system

Super-tight strapping tension

Made in Taiwan: Quality assurance


MODEL
PW-316H
POWER 1 Phase, 220V, 50Hz
STRAP WIDTH 9, 12, 15 mm
STRAPPING TENSION 15 ~ 50 kgs
STRAPPING SPEED 2.0 sec./strap
STRAPPING SIZE Min: 60 mm, Max: Any size
TABLE HEIGHT 750 mm
MACHINE SIZE (L X W X H) 910 x 580 x 750 mm
COUNTRY OF ORIGIN Taiwan



                                   kzb  Series

KZB-I
KZB-T
KZB I (Semi-Auto)
KZBT (Table-Top)

MODEL
KZB I
KZBT
STRAPPING TENSION
40 - 480 N adjustable 40 - 300 N adjustable
STRAPPING SPEED 2.2 sec / strap 1.8 sec / strap
STRAP WIDTH 6 - 15 mm 6 - 10 mm
POWER SUPPLY 110V, 220-240V / 50-60 Hz 110V, 220-240V / 50-60 Hz
POWER CONSUMPTION 0.4 KVA 0.4 KVA
MACHINE SIZE 835 x 560 x 725 mm 700 x 335 x 200 mm
MACHINE WEIGHT 90 kg 20 kg
COUNTRY OF ORIGIN China China
